"Yuanmei Filtration ACF Series Precision Filters: Supported by Patents + Aerospace-Grade Craftsmanship, Redefining the Standards of Compressed Air Filtration."

In the precise chain of industrial production, the quality of compressed air directly determines the operational efficiency of core equipment and the quality of finished products. As a long-term specialist in compressed air filtration, Yuanmei Filtration adheres to top international standards and is dedicated to providing customers with high-quality compressed air filtration systems that meet the most demanding requirements, ensuring the purity of industrial power through technical expertise.

Guided by the ISO 8573 international standard from R&D to production, the company maintains strict quality control throughout the entire process. It has built a comprehensive product portfolio covering the full process of compressed air and gas treatment—whether it is basic filtration for clean and dry air or high-level purification that requires technically oil-free standards, Yuanmei Filtration offers customized solutions. The company ensures that the quality of compressed air output not only meets standards but exceeds the expectations of top industry benchmarks.

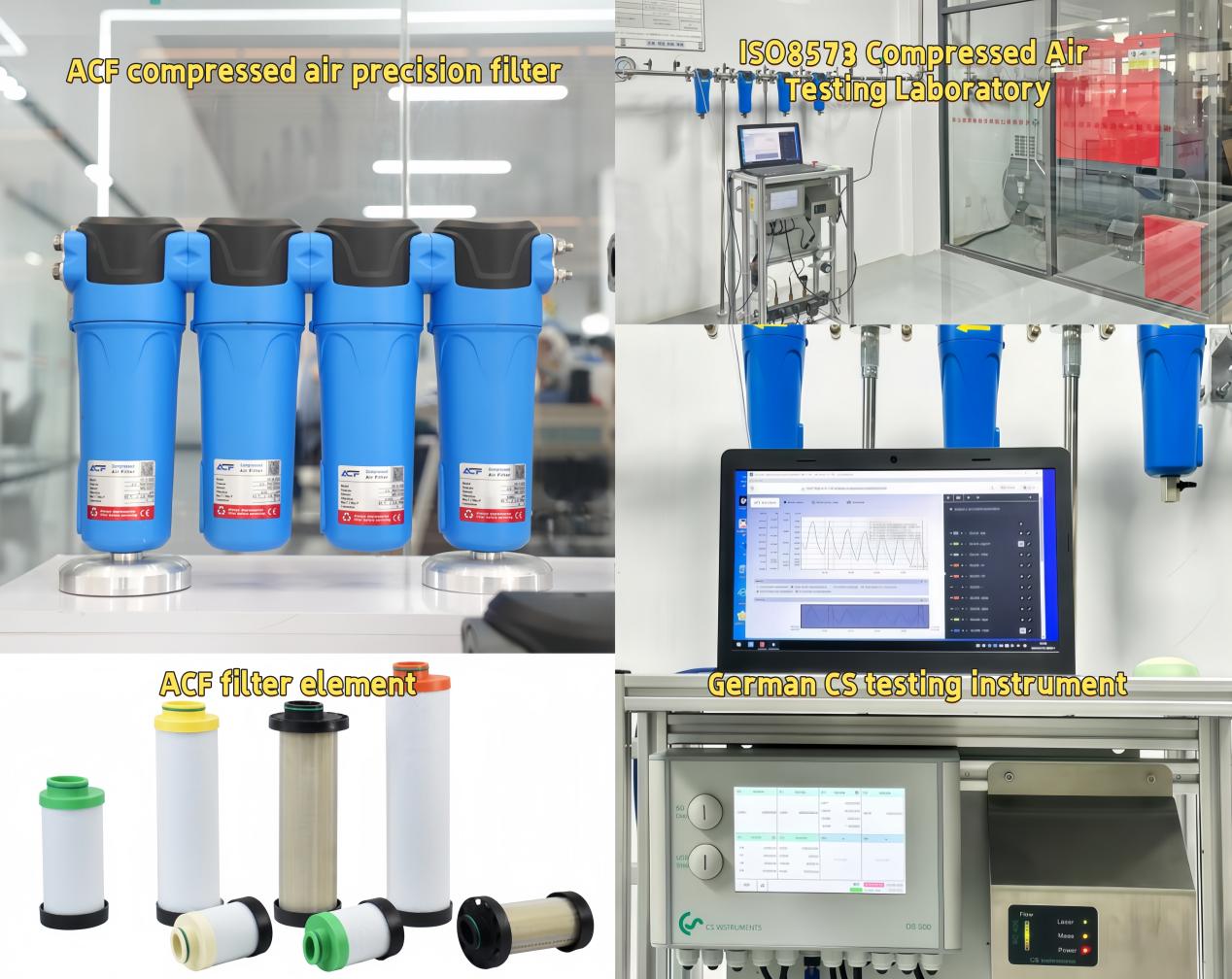

Compressed air quality testing equipment used by Yuanmei

Oil-Check 400

Continually and accurately measure the residual oil content in the form of steam from 0.001 mg/m³ to 2.5 mg/m³.

Class 1 compressed air quality can be monitored through a low detection limit of 0.001 mg/m³ (ISO 8573).

PC400

The high-precision optical particle counter PC400 can measure particles as low as 0.1 μm in size, so it is suitable for monitoring the quality of compressed air at Level 1 (ISO 8573).

FA510

FA510 can measure the pressure dew point up to –80 °Ctd.

At this time, continuous measurement can also ensure that the alarm will be triggered immediately when the compressed air dryer fails.

ACF Laboratory

The ACF laboratory is designed based on the ISO 8573 compressed air standard, which can inspect and analyze the relevant standards of compressed air filters, such as filtration accuracy (dust removal and oil removal) and filter pressure difference.

It can inspect and analyze the classification effect of gas-water separators, and test dew points.

This is an important means for enterprises to have research and development capabilities and ensure product quality.

ACF Series Precision Filters stand as the technological benchmark of Yuanmei Filtration. With independently developed designs, the series has earned national appearance patents, and its breakthrough filter element interface and drainage structure have been awarded national technology patents. The company firmly believes that industrial product aesthetics and functional performance can coexist. The ACF Series embodies a refined and minimal industrial design language, seamlessly integrating practicality with visual quality, offering more flexible and elegant solutions for industrial equipment layout.

Every detail in the manufacturing process reflects Yuanmei Filtration's dedication to craftsmanship. The ACF filter housing is made from aerospace-grade silicon-aluminum alloy and produced through precision die-casting. The resulting structure is dense and robust, capable of withstanding high pressure—having passed the 4.0 MPa ultra-high-pressure test of a national authoritative laboratory. Even under 16 bar operating conditions, it maintains outstanding sealing performance, fundamentally preventing leakage risks in high-pressure environments.

To extend service life, the company upgraded the surface-treatment process through multiple steps. The housing first undergoes deep cleaning, degreasing, and passivation pretreatment to remove every trace of impurity. It is then coated with internal electrophoretic anti-corrosion treatment to form the first protective barrier. Finally, a high-strength epoxy resin layer is applied via electrostatic powder coating, forming a multi-layer composite protection system that significantly enhances corrosion resistance and ensures stable durability in complex industrial environments.

● Class C:

By efficient cyclone separation and collision separation

Filter out particles (water and oil mist): ≥ 3μm

Oil content: ≤ 5ppm

● Class T:

Main pipeline filtration (coagulation type)

Filter out particles (water and oil mist): ≥ 1μm

Oil content: ≤ 1ppm

● Class A:

Efficient oil removal and filtration (coagulation type)

Filter out particles (water and oil mist): ≥ 0.01μm

Oil content: ≤ 0.01ppm

● Class F:

Ultra efficient oil removal and filtration (coagulation type)

Filter out particles (water and oil mist): ≥ 0.01μm

Oil content: ≤ 0.001ppm

● Class H (Activated Carbon)

Ultra efficient oil vapor removal, Filter out solid particles greater than 0.01μm

Remove oil vapor and odors, oil vapor residue maximum of 0.003ppm (21℃)

As the "heart" of the filtration system, the performance of the filter element directly determines purification results. The ACF Series filter elements adopt high-performance borosilicate fiber media combined with a multi-layer porous fiberglass structure, complemented by an outer polyester condensate-collection layer. This innovative material combination provides excellent high-temperature resistance and chemical corrosion resistance. Professional tests confirm that while delivering highly efficient filtration, the elements also maintain one of the lowest pressure drops in the industry, ensuring consistent and stable operation of air-powered equipment.

From post-processing systems of leading air compressor brands to high-precision applications such as laser cutting equipment, precision instruments, medical devices, and food processing, Yuanmei Filtration' s products are widely compatible with various high-purity air-use scenarios, establishing a solid "clean barrier" for the efficient operation of critical equipment.

With years of industry expertise, Yuanmei Filtration has always upheld the core philosophy of "technology drives quality, innovation serves customers." The company offers reasonable market pricing to make top-tier technology more accessible; it earns customer trust through reliable product quality; and contributes pure, efficient power through exceptional performance in industrial operations.

In the future, Yuanmei Filtration will continue to drive innovation, constantly exploring breakthroughs in the field of compressed air filtration. It is committed to becoming the most trusted partner for every customer, working together to advance industrial production toward a cleaner, more efficient, and more sustainable future.

About Yuan:

Wuxi Yuanmei Filtration and Purification Equipment Co., Ltd. is located on the banks of the Taihu Lake in Wuxi, Jiangsu Province, a scenic city. It is a source factory specializing in the production and sales of precision compressed air filters, gas pipeline filters, filter cartridges, mufflers, diffusers, and related products. The company boasts a modern factory, an experienced and efficient team, and a comprehensive scientific quality management system. It adheres to the principles of customer-first service, product quality supremacy, and user value-driven development. Guided by the concepts of integrity, pragmatism, and exceeding customer expectations, Yuanmei Filtration is committed to providing reliable technology and long-term excellent service.

The company sincerely welcomes customers from all over the world to come and patronize them, seek common development, and create brilliance together!
